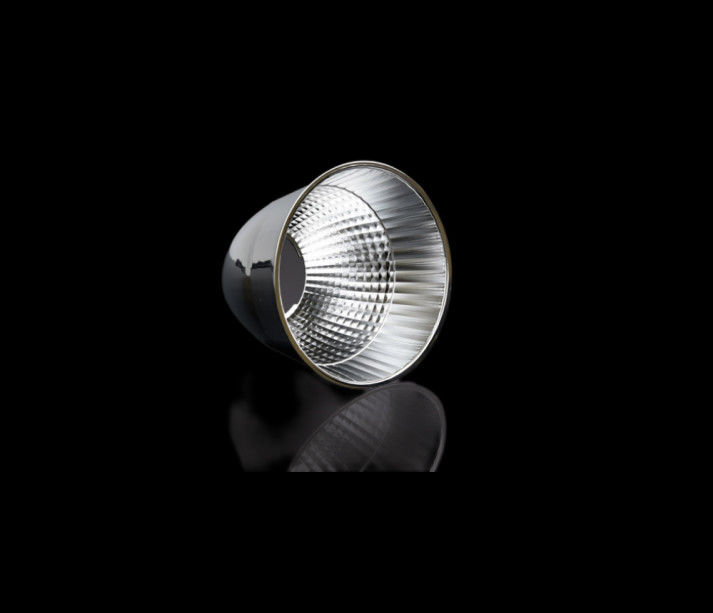

Low Glare LED Downlight Reflector Uniform Spot UGR<19 Anti-Glare Protection Angle>38°
  • Low Glare LED Downlight Reflector Uniform Spot UGR<19 Anti-Glare Protection Angle>38°
  • Low Glare LED Downlight Reflector Uniform Spot UGR<19 Anti-Glare Protection Angle>38°
  • Low Glare LED Downlight Reflector Uniform Spot UGR<19 Anti-Glare Protection Angle>38°

Low Glare LED Downlight Reflector Uniform Spot UGR<19 Anti-Glare Protection Angle>38°

Place of Origin Zhejiang,China
Brand Name ChenMu
Certification ROSH,UL,SGS
Model Number CM01LS-S8362-XX
Product Details
Application:
Shops, Retail, House, Hotel.
Color Of Reflector:
Grey
Supported Ides:
Vesta DW LES9,Vesta DW LES6
Fixation:
Metal Snaps
Material:
AL+PC+PMMA
Support:
Dedicated Customer Support Team
License:
Proprietary
High Light:

Low Glare LED Downlight Reflector

,

Uniform Spot LED Downlight Reflector

Payment & Shipping Terms
Minimum Order Quantity
2000 PCS
Price
Negotiable
Packaging Details
Cartons
Delivery Time
3-5 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
10000pcs/per week
Product Description

Low-Glare Downlight Reflector Uniform Spot, UGR<19, Anti-Glare Protection Angle>38°



Quick detail



Product Name: CM01LS-S8362-XX Beam Angle: 55°
Efficiency: 92% Material: aluminium+PC
LED Chips: LUXEON 3030 2D(ROUND LES) Dimmable: ∅83*61.7mm
Accessory: Reflector+Holder+Lens
Application: Shops, Retail, House, Hotel.







Description





       Low-Glare Downlight Reflector Uniform Spot, UGR<19, Anti-Glare Protection Angle>38°

  • Super light mixing ability, uniform spot, UGR<19, anti-glare protection angle>38°.
  • High tube and deep hidden light, double anti-glare structure, anti-glare and reflective cup integration.
  • 2700k-6500k SMD light source, flexible and changeable.
  • Application Corridor, Office, House.
  • Twist-lock assembly.



Specifications



Product Name: CM01LS-S8362-XX
Beam Angle: 55°
Efficiency: 92%
Material: aluminium+PC
LED Chips LUXEON 3030 2D(ROUND LES)
Size: ∅83*61.7mm
Accessory: Reflector+Holder+Lens
Application: Shops, Retail, House, Hotel. ect.
Quatity Guarantee: If you receive a defective item, please
email us a picture of the defective part. We will arrange for a reshipment or refund to you.
Main Maket: Europe,South America,North America,Asia ect





Shipping and Delivery:




Trade Terms:
EXW , FOB , CNF , CIF
Payment Terms: T/T , PayPal , Western Union, Moneygram
Delivery time: 2-3 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc

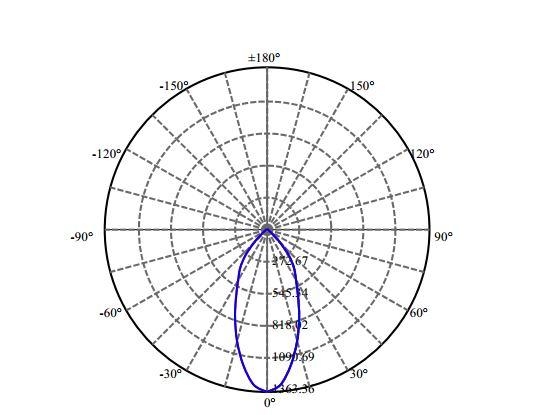

IES



日大照明有限公司 - L E D Vesta DW LES9 1-0788-M2







Drawing

Low Glare LED Downlight Reflector Uniform Spot UGR<19 Anti-Glare Protection Angle>38° 1









Notices



  • Storage: Do not store in dusty place, or expose under corrosive environment.
  • Contact: Do not touch the lens surface with bare-hand. Please use gloves to
    touch the lenses.
  • Cleaning: Clean lenses only if necessary. Use only mild soap, water and
    soft cloth.Do not use any commercial cleaning solvents.



FAQ



1) Can I have a sample order?


A: Yes, we welcome sample order to test and check quality.


Mixed samples are acceptable.



2) When can I get the quotation?



A: We usually give you an offer within 12 hours after we get your inquiry. But if you want to get the offer ASAP,please call us or email us that we can reply to you in time.



3) What is the lead time?


A:Sample needs about 3-5 days prepared; mass production time needs 7-10 days normally.



4) What are your main products?



A: Our main products are outdoor lenses and indoor lenses .such as:Street &AREA Light lens ,Single lenses,High Bay Light ,ect.
