IP66 Protected LED Street Light Lens with 92% Efficiency and Asymmetrical Light Distribution for Outdoor Applications
  • IP66 Protected LED Street Light Lens with 92% Efficiency and Asymmetrical Light Distribution for Outdoor Applications
  • IP66 Protected LED Street Light Lens with 92% Efficiency and Asymmetrical Light Distribution for Outdoor Applications
  • IP66 Protected LED Street Light Lens with 92% Efficiency and Asymmetrical Light Distribution for Outdoor Applications
IP66 Protected LED Street Light Lens with 92% Efficiency and Asymmetrical Light Distribution for Outdoor Applications

IP66 Protected LED Street Light Lens with 92% Efficiency and Asymmetrical Light Distribution for Outdoor Applications

Place of Origin Zhejiang,China
Brand Name ChenMu
Certification ROHS,UL,SGS,
Model Number CM-S23670-T2-12H1
Product Details
Oem:
Available,YES
Material:
Optical Grade PC
Working Temperature:
-40 To 80℃
Accessory:
PCB Board + Silicone Gasket + Heat Sink
Light Distribution:
Asymmetrical
Description:
Optical Grade, Led Spotlight Lens
Waterproof:
Yes/Gasket
Efficiency:
92%
Uv Resistance:
Yes
Led Chips:
SMD5050/7070/3030
Highlight:

12in1 LED Street Light Lens

,

T2 LED Street Light Lens

,

3030x4 LED Street Light Lens

Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Negotiable
Packaging Details
Cartons
Delivery Time
3-5 working days
Payment Terms
T/T,Western Union,MoneyGram
Supply Ability
100000PCS/Per week
Product Description

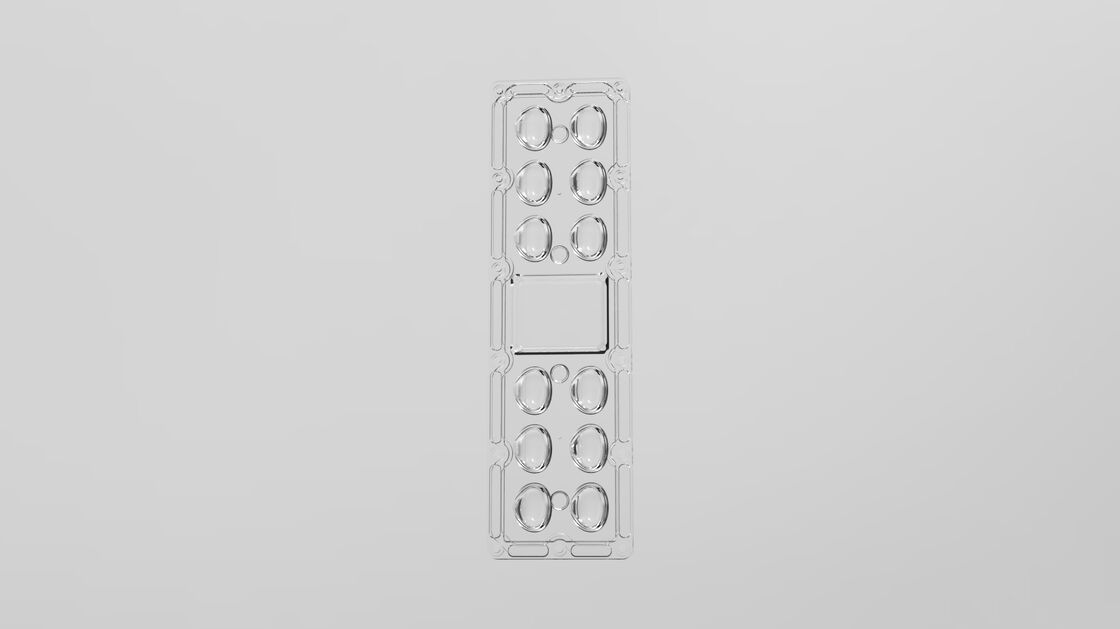

SMD7070 & 3030x4 12in1 T2 LED Street Light Lens With Gasket
This advanced LED street light lens module combines high-performance SMD7070 and 3030x4 LED chips in a compact 12-in-1 configuration, featuring a precision T2 optical design for optimal light distribution and IP66 protection for outdoor applications.
Quick Specifications
Product Name CM-S23670-T2-12H1
Beam Angle 80x150°
Efficiency 92%
Material PC
LED Chips 3030x4/7070/5050
Size L236*W70 mm
Accessory SMD LED+GASKET+PCB+Heat Sink or Module
Application Flood Light, Tunnel Light, Street Light
Key Features
  • Dual LED Configuration: 1x high-power SMD7070 LED chip and 4x efficient SMD3030 LED chips (total 12 chips in 4 clusters)
  • Optical Performance: T2 lens technology for superior light control, wide beam angle with uniform illumination, anti-glare design for street lighting
  • Robust Protection: High-grade silicone gasket sealing, IP66 protection rating (dust-tight and protection against powerful water jets), UV-resistant housing material
  • Environmental Specifications: Operating temperature: -40°C to +60°C
IES Performance
IP66 Protected LED Street Light Lens with 92% Efficiency and Asymmetrical Light Distribution for Outdoor Applications 0
Technical Drawing
IP66 Protected LED Street Light Lens with 92% Efficiency and Asymmetrical Light Distribution for Outdoor Applications 1
Handling & Storage Notices
  • Storage: Do not store in dusty places or expose to corrosive environments
  • Contact: Do not touch the lens surface with bare hands. Use gloves when handling lenses
  • Cleaning: Clean lenses only when necessary using mild soap, water, and soft cloth. Do not use commercial cleaning solvents
Shipping & Delivery
Trade Terms EXW, FOB, CNF, CIF
Payment Terms T/T, PayPal, Western Union, Moneygram
Delivery Time 2-3 working days for samples, 5-7 working days for bulk orders
Shipment Terms By Sea, By Air, By Express (DHL, Fedex, UPS, TNT, etc)
Frequently Asked Questions
Can I order samples?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
When can I get a quotation?
We typically provide quotes within 12 hours after receiving your inquiry. For urgent requests, please contact us directly.
What is the lead time?
Samples require 3-5 days for preparation; mass production typically takes 7-10 days.
What are your main products?
Our main products include outdoor and indoor lenses such as Street & Area Light lenses, Single lenses, High Bay Light lenses, and more.
